随着5G商用的不断深化，用户对承载网络传输速率和容量的需求提升，传统的1~2芯通信通道已无法满足需求，多芯数的MPO连接器用于室外移动通讯基站的优势已越来越明显：
一方面，一个12芯MPO连接器的通信容量相当于传统2芯连接器的6倍，在高通信容量的使用场景下，大大减小了接口界面的尺寸，节省了空间；
另一方面，使用传统连接器每次安装仅可连接1~2芯，而使用MPO连接器一次安装即可实现多芯数通道的连通，降低了操作工时，节省了光缆成本。
中航光电通过持续不断的创新突破，高可靠新型室外MPO光纤连接器终于和大家见面了！
JONHON has developed a highly reliable MPO outdoor optical fiber connector to meet the needs of higher speed and larger capacity of network transmission.
Compared with traditional 1-core or 2-core connector, multi-core MPO connector is a better choice for outdoor mobile communication base station field because of following advantages:
- The communication capacity of one 12-core MPO connector is 6 times as great as one traditional 2-core connector, saving interface space.
- It can connect multi-core channel at one time, improving efficiency and cutting costs.

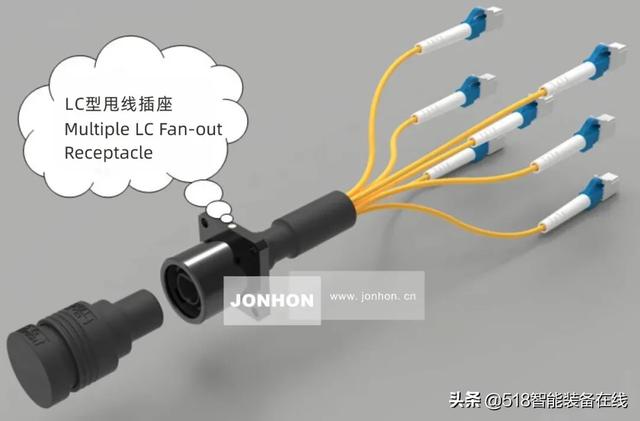

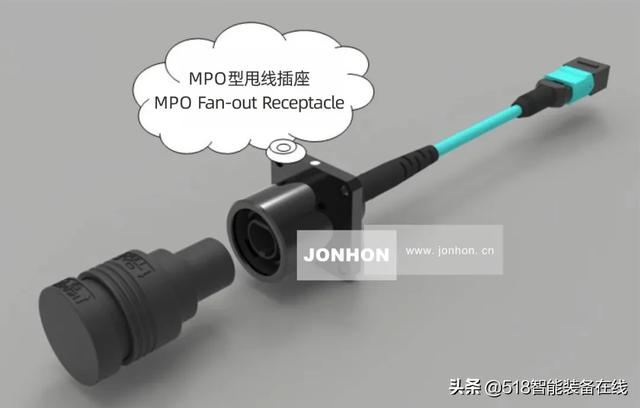

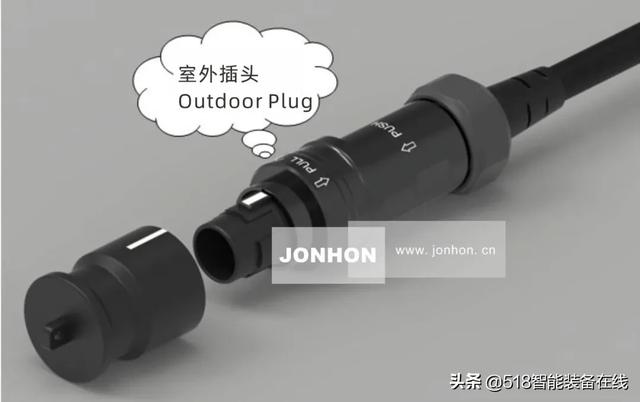

产品简介 Introduction
应用场景
用于通讯基站光纤信号传输，可满足宏站64T64R MMU需求；也可用于长距离室外中继转接。
Application
- Used for optical fiber signal transmission in communication base stations, meets the needs of 64T64R MMU for macro base station.
- Used for long-distance outdoor relay transfer.
▼快速安装
具有自主知识产权的推拉连接结构，头座拆装均可一步完成，提高了操作便捷性。
▼高密度传输
连接器内置MT插芯，可满足1-24芯光信号传输。
▼超小体积、轻量化
具有自主知识产权的内部结构，外部为金属防护外壳的同时大大减小了整体体积及重量。
▼高可靠密封性能
采用高可靠密封技术保障室外环境使用，避免了同类产品仅依靠热缩管密封而带来的长期使用不可靠性。
▼超短交货周期
插头连接器与光缆间采用无胶化固定连接方式，极大缩短了装配周期，可满足紧急情况下的超短交货周期需求。
▼适配光缆类型
插头可适配内部抗拉元件为芳纶纤维或玻璃纤维的光缆，通用性强。
▼Easy installation
Independent R&D push-pull connection and disconnection structure, easy operation.
▼High density transmission
Built-in MT ferrule for 1-core to 24-core optical signal transmission.
▼Small size and light weight
Independent R&D internal structure, the overall volume and weight are greatly reduced even use a metal protective shell.
▼Reliable tightness
Reliable sealing technology guarantees outdoor use, more reliable than traditional heat shrink tube sealing.
▼Quick delivery
Non-Epoxy Connection type between plug and optical cable, short assembly cycle.
▼Adapter cable
Cables with tensile element of aramid yarn or glass yarn, wide range of applications.
性能指标
- 连接方式：推拉快锁
- 插入损耗：≤1.0 dB(MPO+LC)
- 适配光缆： φ6.3mm~φ7mm
- 工作温度：-40℃～85℃
- 光缆保持力：≥200N
- 盐雾：≥720小时
- 耐UV：≥720小时
- 机械寿命：≥50次
- 防护等级：IP66&IP67
- 其余机械环境性能符合GR-1435
Performance
- Connection: push-pull
- Insertion loss: ≤1.0 dB(MPO+LC)
- Adapter optical cable: φ6.3mm~φ7mm
- Working temp: -40℃～85℃
- Cable retention: ≥200N
- Salt spray: ≥720 h
- UV resistance: ≥720 h
- Endurance: ≥50 cycles
- IP degree: IP66&IP67
- Other mechanical environmental performance complies with GR-1435
高可靠新型室外MPO光纤连接
Highly reliable MPO outdoor optical fiber connector
