CT75A光伏矩形防水连接器，主要应用于光伏电站等需满足户外防水要求的信号传输场景。该产品采用扳手扣合式连接，可实现头座快速锁紧与分离，做线内芯采用弹片压线，易于安装与维护。
新品发布 New releases
CT75A光伏矩形防水连接器，主要应用于光伏电站等需满足户外防水要求的信号传输场景。该产品采用扳手扣合式连接，可实现头座快速锁紧与分离，做线内芯采用弹片压线，易于安装与维护。
CT75A photovoltaic rectangular waterproof connector is mainly used in outdoor signal transmission system such as photovoltaic power stations, adopting wrench snap-on structure for rapid locking and disconnection, and spring clamp connection inside for easy installation.

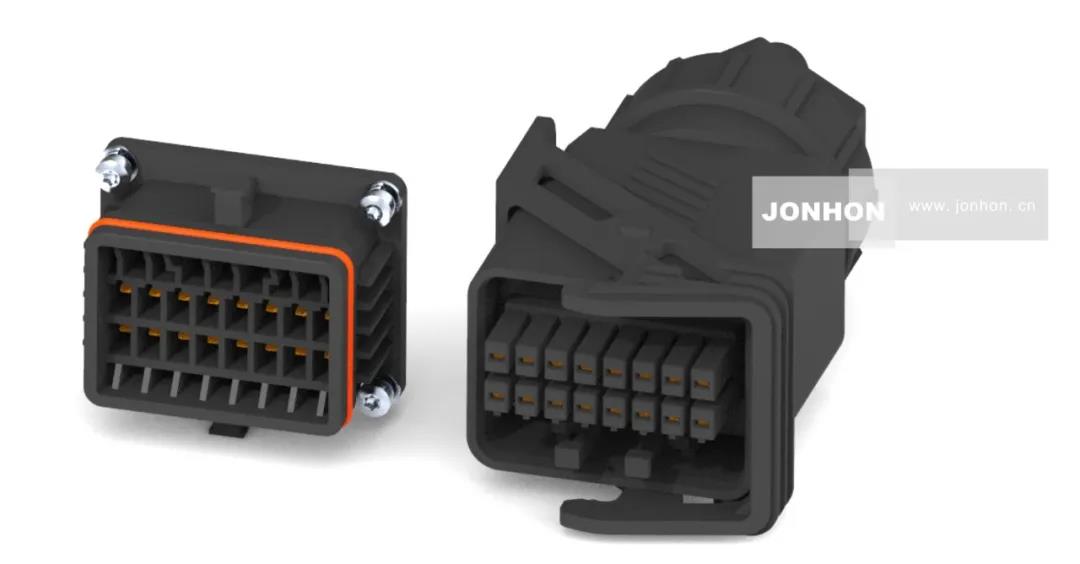

▼CT75A系列信号连接器
▼CT75A Series Signal Connector
产品简介
Introduction
线缆端内芯采用弹片压线式设计，将做线内芯拉出后，按动按钮即可完成压接，方便可靠。 面板端法兰自带不松脱紧固螺钉，方便安装。 产品壳体整体选用高耐候材料，端子采用成熟冲压工艺，在满足严酷户外环境同时更具性价比。 The contacts inside plugs adopt spring clamp connection design. Only push buttons to finish wire crimping after pulling out the inner core. The flange of receptacles uses self non-loosen screws, which is easy for installation. High weather-resistance housing and stamping terminals can stand harsh environment with great cost-effective. 性能指标
额定电流：2A额定电压：24V DC工作温度：－40℃～105℃频率：10-55-10 Hz，振幅1.52mm；每个垂直面持续2小时；电流瞬断时间小于1us冲击：加速度490m/s²，持续时间11ms机械寿命：100次防护性能：IP65适配单根线径：0.2mm²~1.5mm²尾部附件适配成缆线径：φ 4~8 mm/φ 8~11mmPerformanceRated current: 2ARated voltage: 24V DCWorking temp: -40℃～105℃Frequency: 10-55-10Hz, amplitude 1.52mm; each vertical plane lasts 2h, the time of current transient ＜ 1usShock: acceleration 490m/s², 11msEndurance: 100 cyclesIP degree: IP65Adapter single-wire gauge: 0.2mm²~1.5mm²Cable gauge of accessories: φ 4~8 mm/φ 8~11mm
