近年来，随着电动自行车新国标发布，国内锂电换电两轮车业务也迅速发展。中航光电涉足E-bike行业十余年，针对换电行业发展需求，开发了EBP系列产品，全面覆盖主流的硬连接换电和软连接换电。

E-bike industry is booming rapidly in recent years. Engaged in this industry a dozen years, JONHON has launched EBP series for battery swap which has two kinds of connection: board to board and wire to wire.

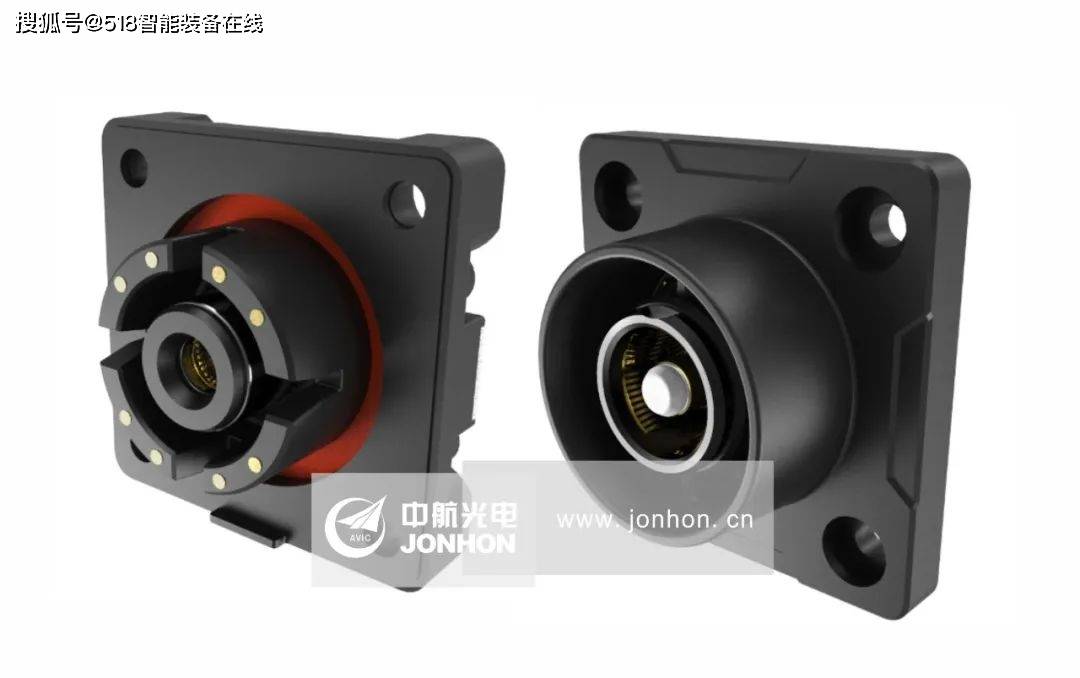

△EBP-40YMTT0208、EBP-40YFTT0208

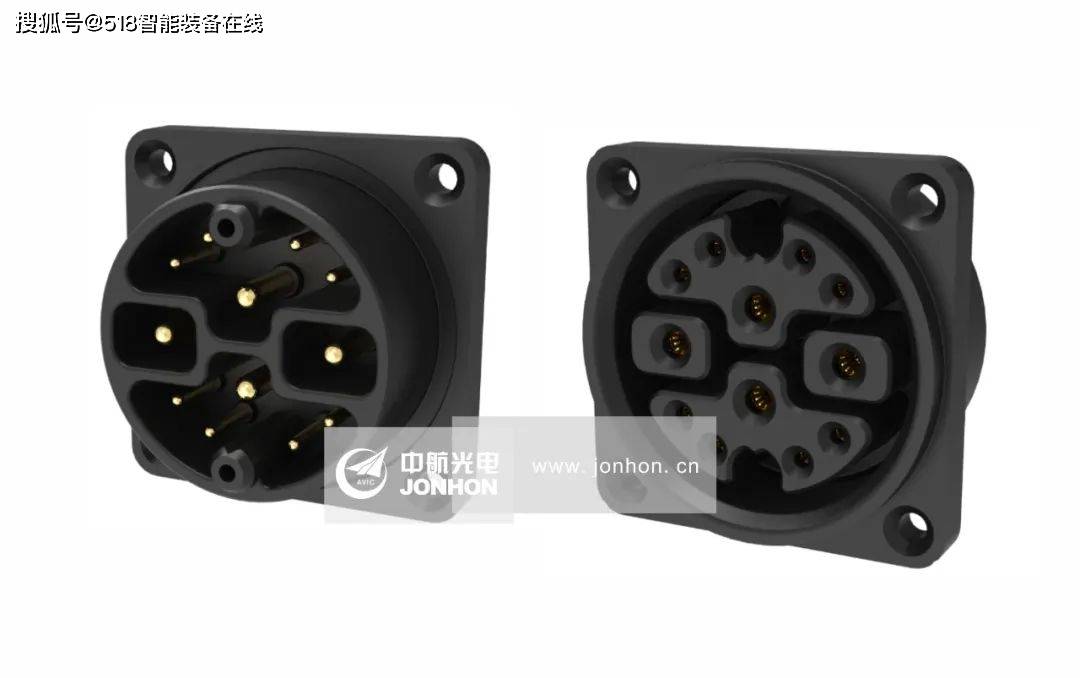

△EBP-40YMTT0408、EBP-40YFTT0408

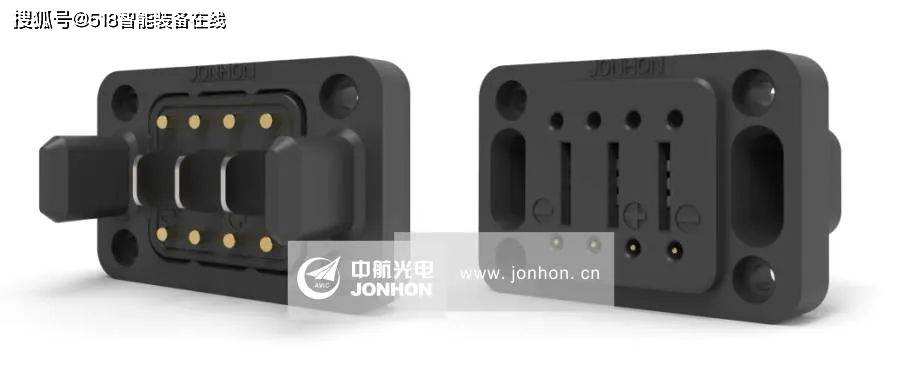

△EBP-40JFST0204、EBP-40JMST0308

　　以上三款为EBP硬连接 换电系列，适用于电池端、车端、充电柜端。可基于以上连接器，根据用户需求提供整套线束成品。批量供货产品日产能可达到15000套。

The above three sets of EBP board to board series connectors are available for terminals of battery, bike and charging cabinet. Wiring harness can be customized and daily production capacity can reach 15,000 sets in mass production.

EBP硬连接换电系列产品性能指标：

耐电压 : 500V DC

防护等级 : 电池端安装满足IP67/66

工作温度 : -20℃~70℃

机械寿命 : 5000次

插拔特性：均满足180°正反插

Performance (EBP board to board series):

Withstand voltage: 500V DC

Protection degree: IP67/66 (battery terminal)

Working temp: -20℃~70℃

Endurance: 5000 cycles

Insertion features: reversible connection

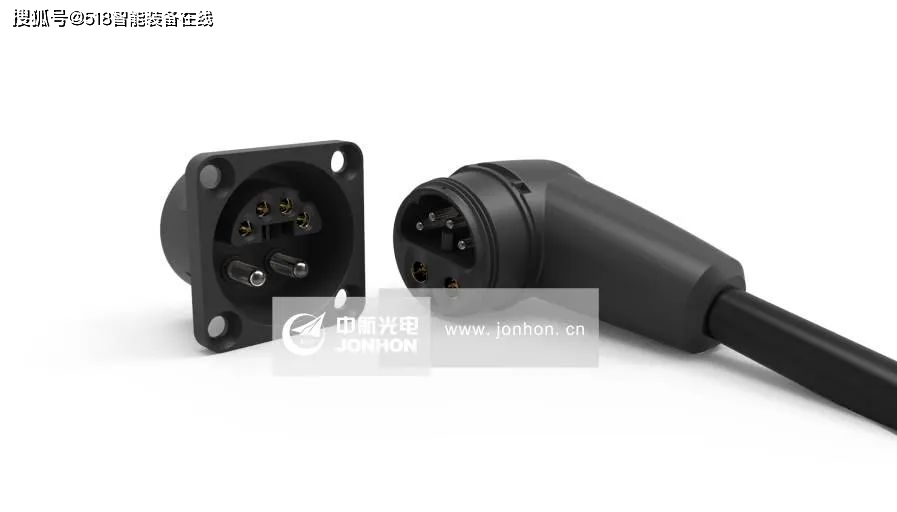

△EBP-40RFTT0206

EBP-40RMTT0206 L=XXX

额定电流40A，线长根据用户定制，机械寿命5000次

Rated current 40A, customized wire length, 5000 cycles

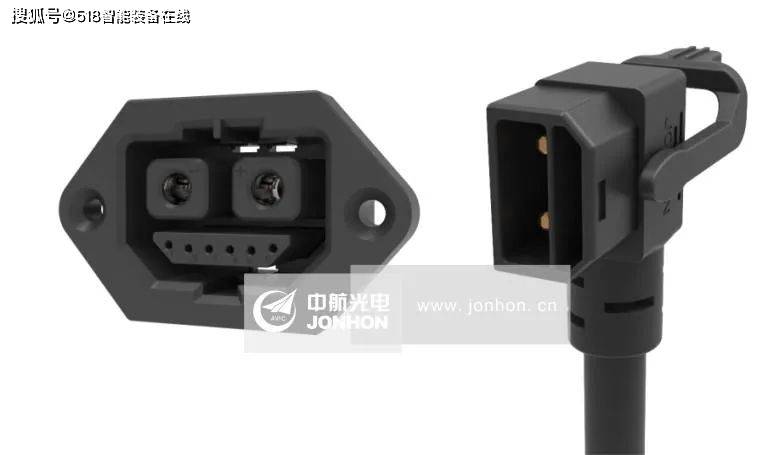

△EB-338-6T L=XXX

EB-338-6Z L=XXX

额定电流30A，线长根据用户定制，机械寿命2500次

Rated current 30A, customized wire length, 2500 cycles

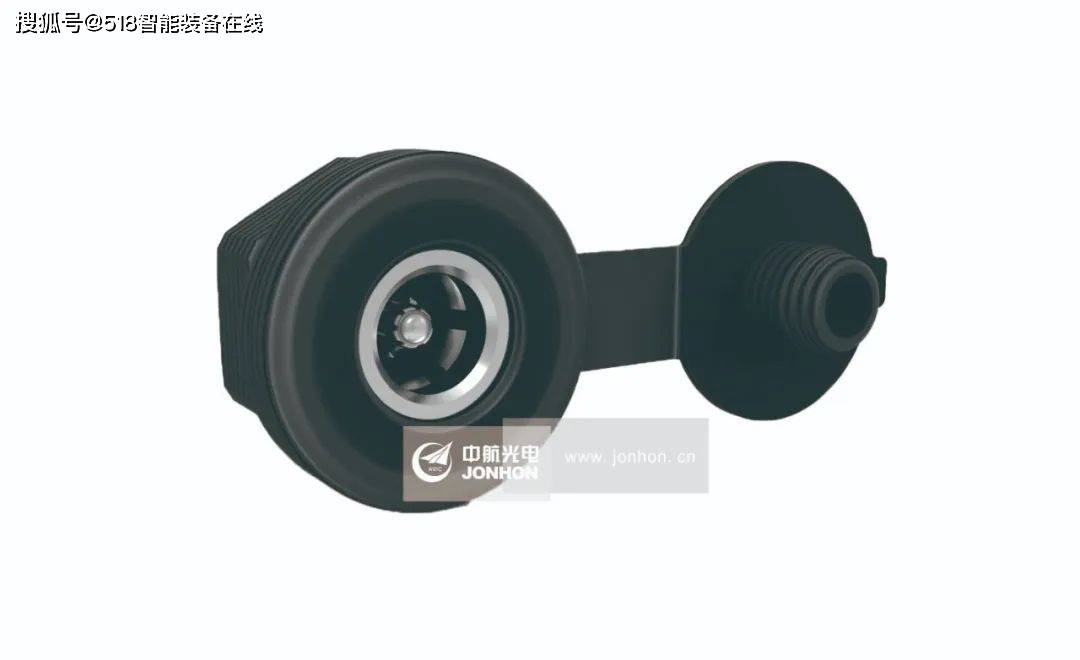

△EBP-5YFTN0200

5521系列慢充插座，额定电流5A，机械寿命2500次

5521 series DC receptacle, rated current 5A, 2500 cycles

以上三款为EBP软连接换电系列，用于软连接的充放电模式，插座固定安装于电池顶部，带线插头置于车辆或者充电柜上。

The above three are EBP wire to wire series, with receptacles on the top of battery and plugs with cables on the bike or charging cabinet.

EBP软连接换电系列产品性能指标：

耐电压 : 500V DC

防护等级 : 电池端安装满足IP67

工作温度 : -20℃~70℃

Performance (EBP wire to wire series):

Withstand voltage: 500V DC

Protection degree: IP67 (battery terminal)

Working temp: -20℃~70℃

　　中航光电以专业的设计方案、高效的批产速度、稳定的质量水平、贴心的售后服务，为两轮车换电提供有力的保障，让世界出行绿色又安全。
